FEATURED 2024  Spartan Mower  RZ-HD 61"  Kaw FR730V 24HP

----Cash/Check (no debit or credit cards) $6995 plus tax, Financing price $8019 plus tax with 0% financing for 48 months*.------

**PRICES INCLUDE $1000 REBATE THAT IS ALREADY TAKE OFF. GOOD UNTIL JUNE 30TH.**
*Financing through Sheffield Financial and subject to credit approval, see dealer for complete details.

Key Features
5" Cut Height
2+ Acres
9 MPH Top Speed
9.5 Gal Fuel Capacity
Parker HTE 10cc Transmission
22" Radial Rear Tires
Deluxe Seat
360-Degree Seat Plate

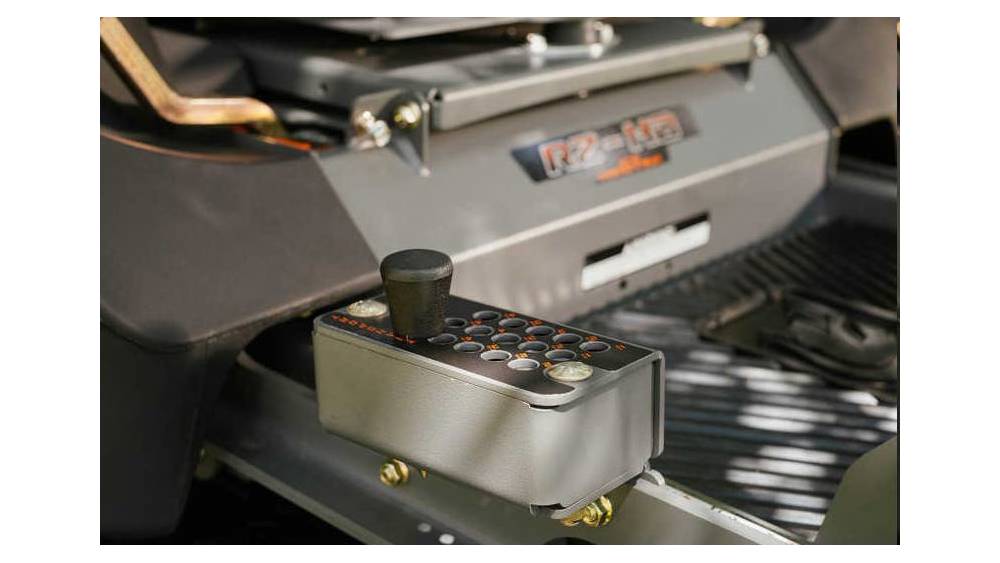

NEW Magnetic Pin Height Adjustment

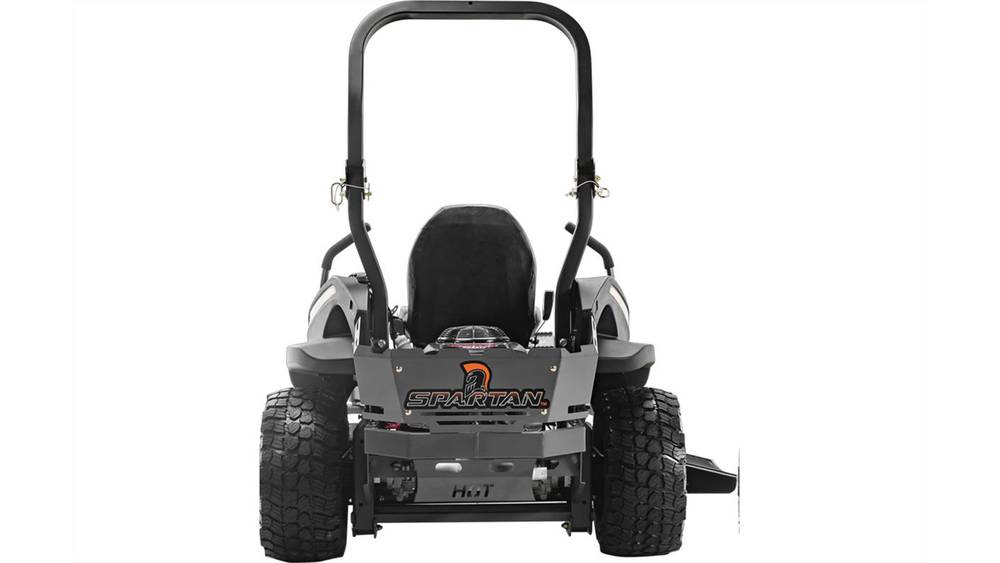

Folding ROPS
GT Trac Stabilization
18,500 FPM Blade Tip Speed
Protective Side Deck Trim
NEW Upgraded Spindles
7-Gauge XTF Deck

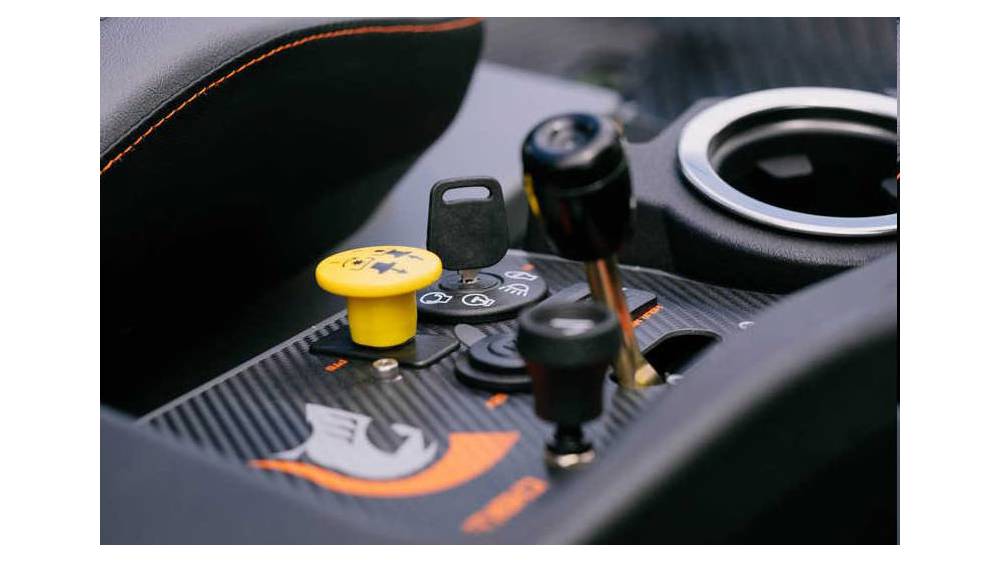

Key Switch Panel
Foot Operated Shock Assisted Deck Lift
Foot Operated Parking Brake
12V Outlet
NEW Large Cup Holder
Phone Holder in Console
Storage Tray in Console

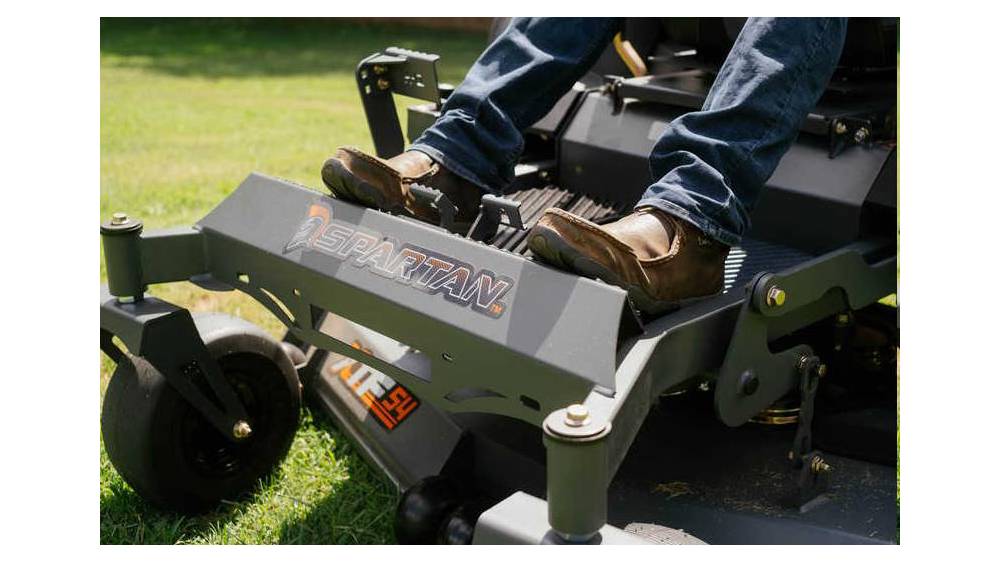

Anti-Vibration Floor Mat
Standard Advantages
Rear Radial Tires: Both RZ-HD models, the RT-HD, and up feature exclusive radial tires that provide a smoother ride and increased traction. Challenge our ride against others out there and you’ll feel it for yourself. *RZ-C, RZ, and RZ-Pro not included.
Hd Fusion Welded Frames: The frames on RZ-C models and up are constructed from heavy-duty 3" x 1.5" 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.
7-Gauge Steel Decks: Defender models and up feature heavy-duty decks fabricated from 7-gauge steel. Check out the competition and see the difference for yourself.
Parking Brake Pedals: Another feature that helps you maintain control is the foot-controlled on and off parking brake, which allows you to keep both hands on the control levers. *Standard on the RZ, RT, SRT, and KGZ series.
12v Outlet: Not only a place for your phone, but a way to charge it or to power other 12V items. *Standard on RZ-C models and up. Storage pocket not included on RZ models.
Enhanced Xtf Deck System: Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.
Anti-Slip Mat: All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.
Vibration Controlled Deck: Standard on all RZ-C models and up, the vibration controlled deck system with a one-piece idler puller and shock absorber eliminates belt whip and reduces vibration.
Full Suspension Seat: Exclusive Spartan Mower seats offer supreme comfort. A 3" adjustable seat made with Dymetrol® material, coupled with adjustable TecsPaks® elastomers under the seat platform offers a ride that’s above industry standard. *Standard on KGZ-XD, SRT series, RT-HD, & RZ-HD Blackout. Available upgrade on RZ-HD & RT-Pro.
Resilient Bushings: Special resilient bushings on the mower stabilizing arms reduce the shock and damage to the mower if it hits curbs, stumps, or other debris.
Hillside / Traction: Spartan Mowers has engineered superior technology that combines perfect balance with superb incline control for a smoother, safer ride. Take it on an incline and feel the difference. *Industry standard does not recommend mowing on inclines over 15 degrees.
U.S.A.: All RZ-C models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We're proud of our hardworking team and community.
High Quality Parts: Commercial-grade DNA is a key characteristic of Spartan Mowers, so our RZ-C models and up feature the same heavy-duty components across the lineup.
Design & Style: Our passion for muscle cars from the late '60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.
Ez Debris Removal: To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.
Stress Pads: Rest your arms and wrists while mowing, and your neck and shoulders will thank you. Stress pads are standard on KGZ-XD, SRT-XD, and RT-HD models and available as an upgrade on the RZ-C and up.
Led Light Kits: Mounted directly to the front of the mower, an LED light bar is great for finishing up at dusk and lighting the way to your trailer or shed. Light bars are standard on Spartan's RZ-HD Blackout, RT-HD, SRT series, KG-XD, and KGZ-XD models. *Available upgrade on RZ-C, RZ, RZ-Pro, and RZ-HD.
Adjustable Arms: Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.
Engine
Engine Name: Kawasaki FR730V
Horsepower: 24 HP
Fuel Capacity: 9.5 gal.
Drive Line
Hydraulic Drive: Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque: Continuous - 262 ft. lb. | Max Torque - 406 ft. lb.
Hydro Drive Maintenance: 1,000 Hours Between Oil Change
Drive Tires: 22x12 - R10 Radial
Front Tires: 13x6.5-R6 Smooth Tread with Optional Radial Upgrade, No Flats, or Tweels
Wheels Type: Steel
Speed (F/R): Forward - Up to 9mph | Reverse - Up to 5mph
Features
Seat: 360 Degree Floating Seat Platform
Steering Levers: Adjustable Up and Down
Ignition: Key Switch
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, and Deep Storage Tray
Cutting Deck
Deck Sizes: 61 in.
Deck Depth: 5 in. Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift: ft. Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1 in. to 5 in. with 15 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5 in. by 3 in. Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 62.5 in. Wide
Weight: 1095 lb.
Length: 84 in.
Height: 75 in. with ROPS Up - 54" with Folding ROPS Down
Warranty
Engine Warranty: 3 Year
Full Warranty: 3 Year / 400 Hour - 120 Day Belt Warranty
Deck Warranty: Lifetime on the leading edge
Hydraulic Drive Warranty: 3 Year / 750 Hour
NOTES:

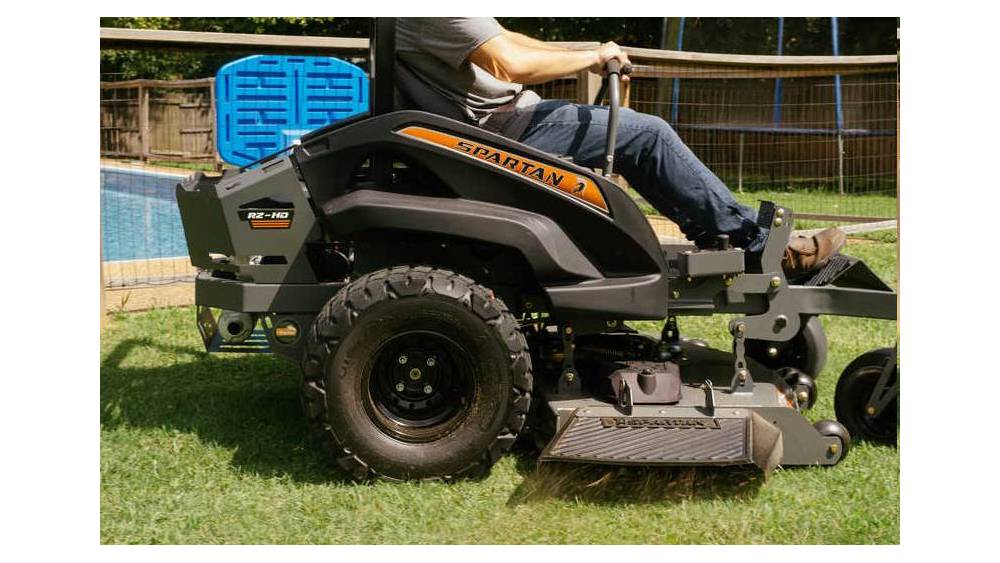

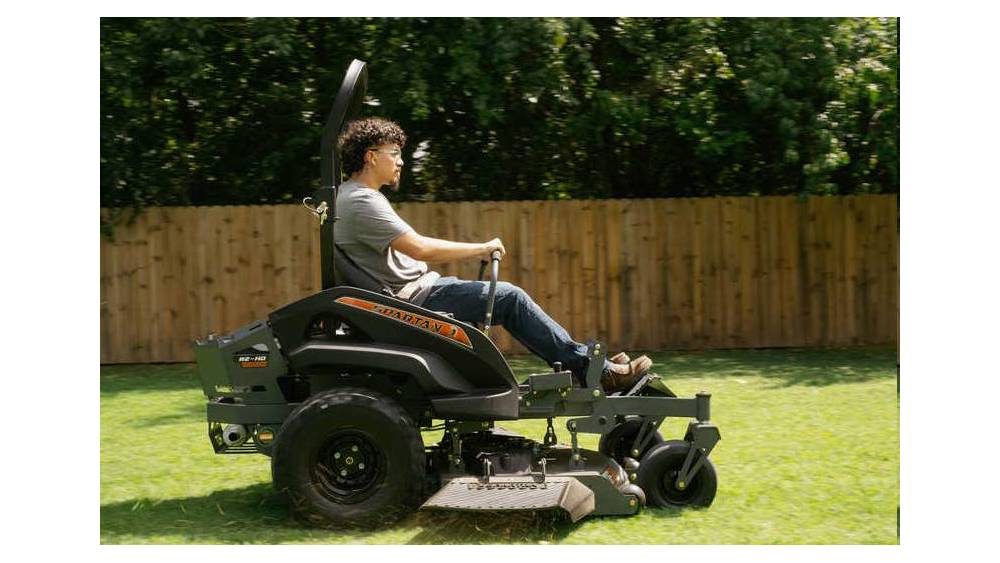

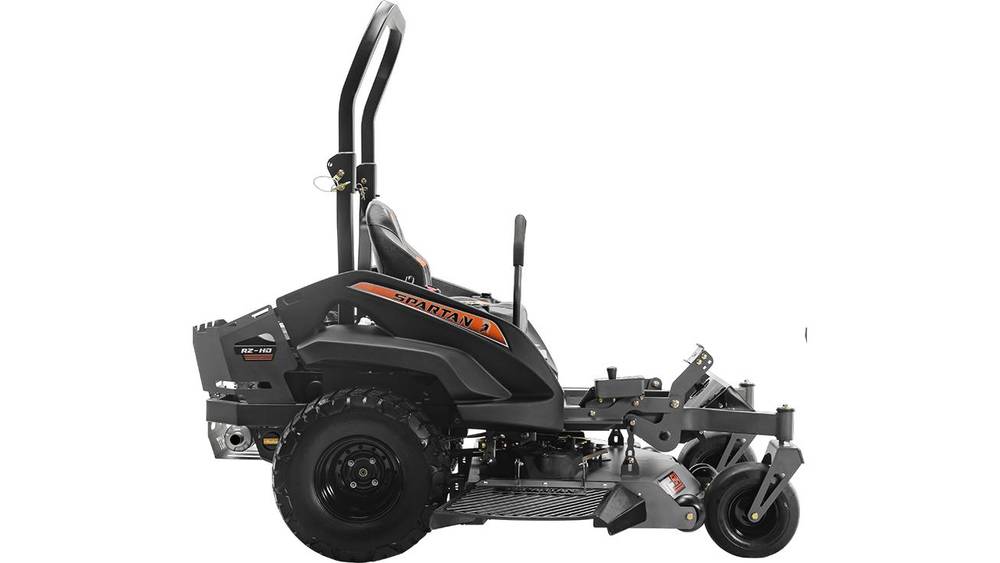

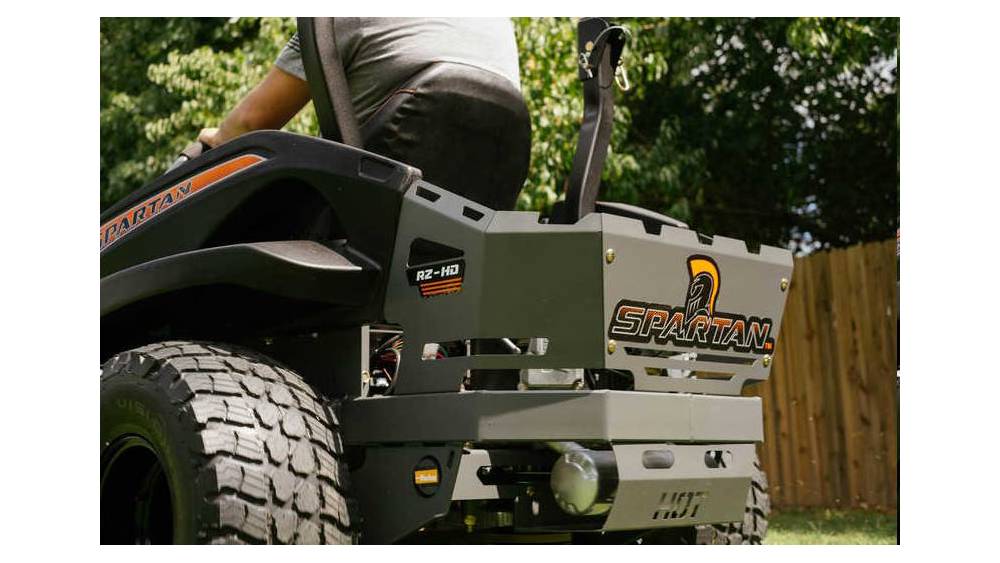

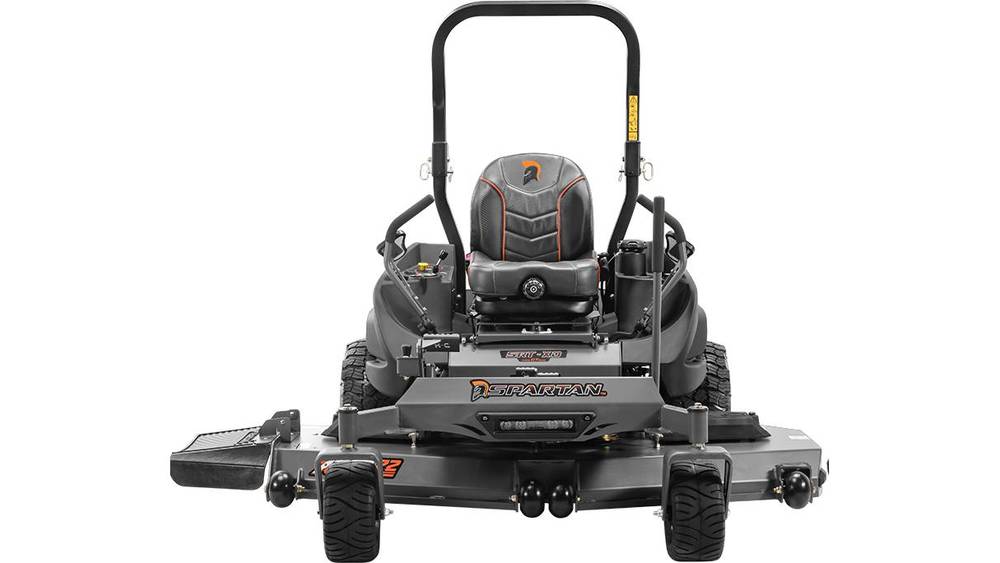

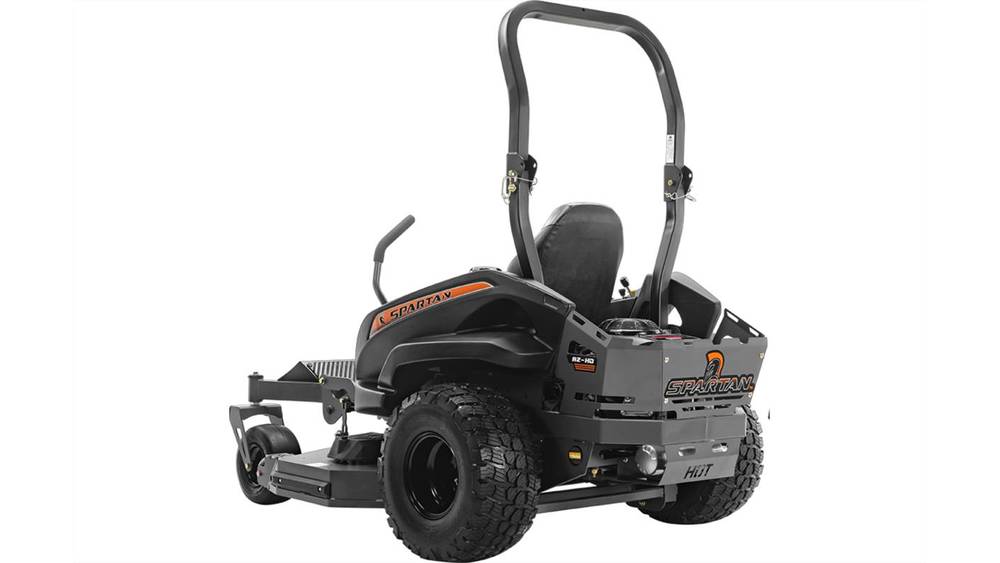

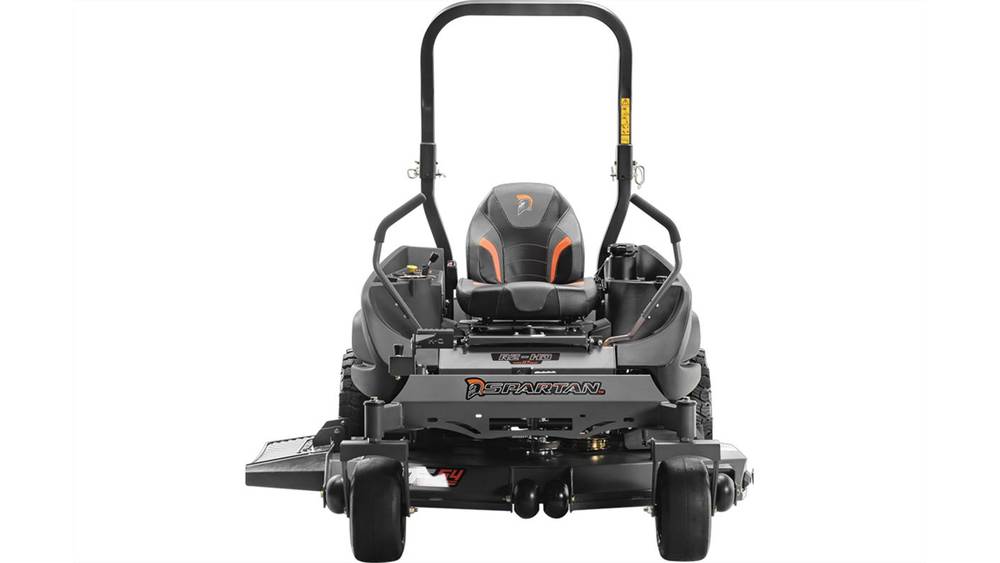

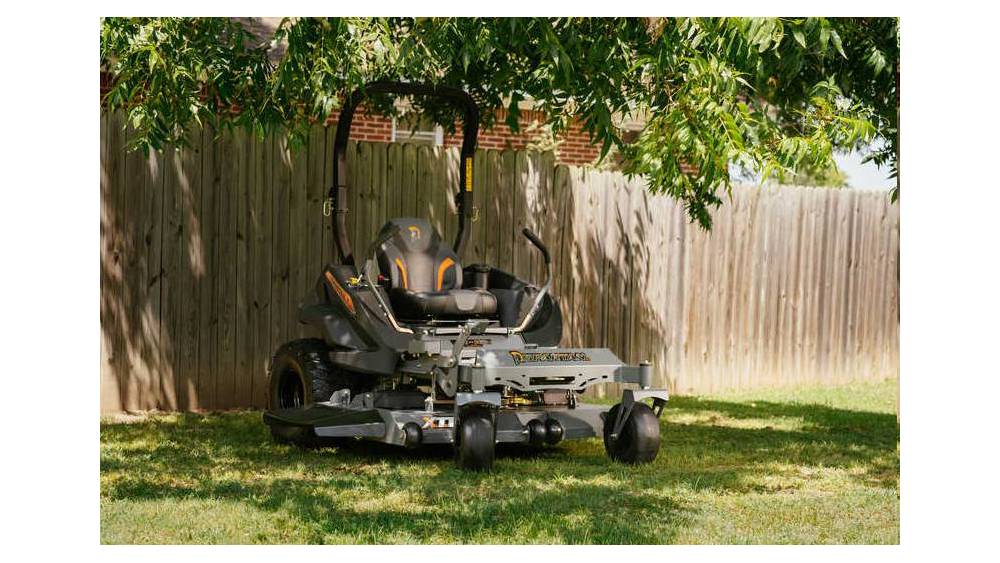

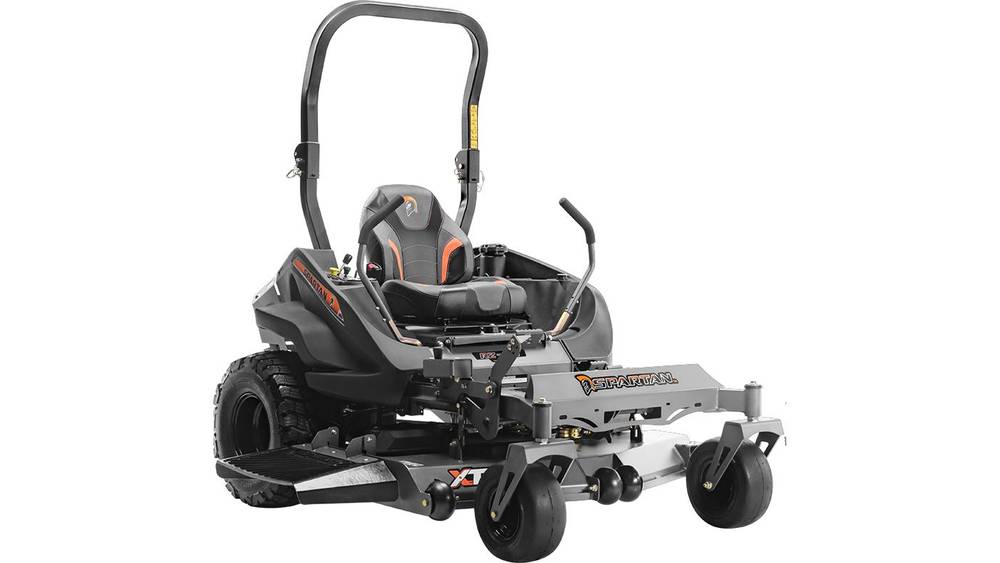

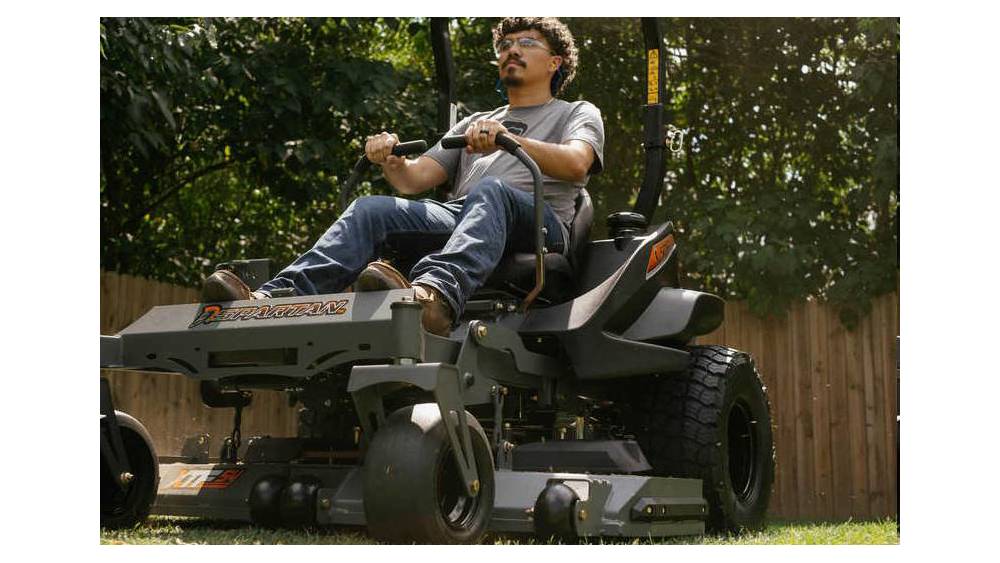

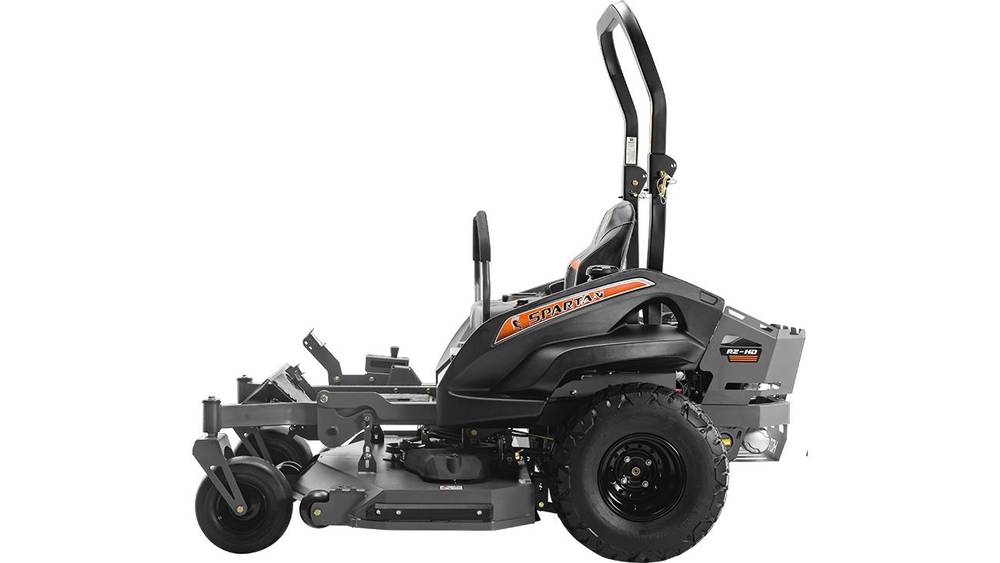

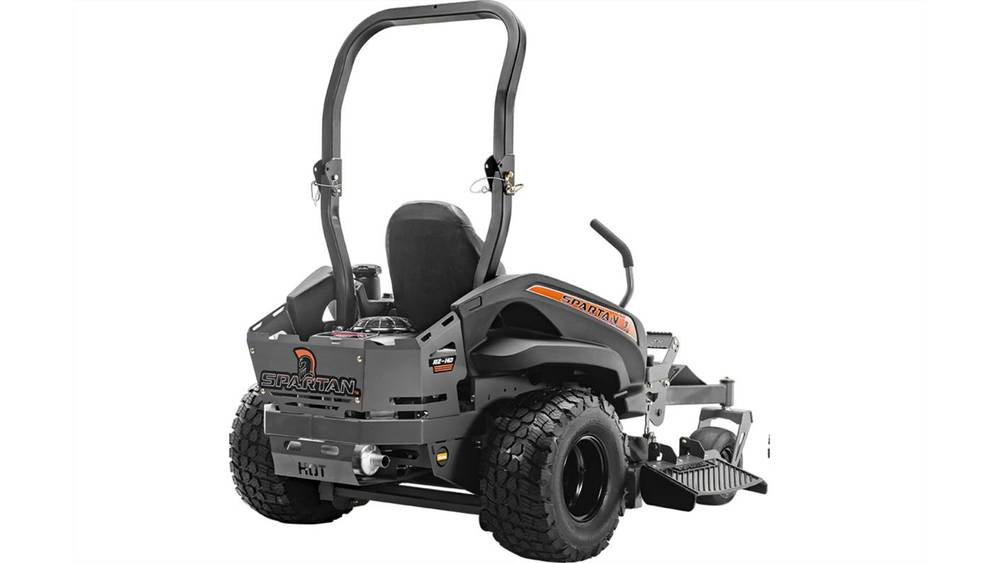

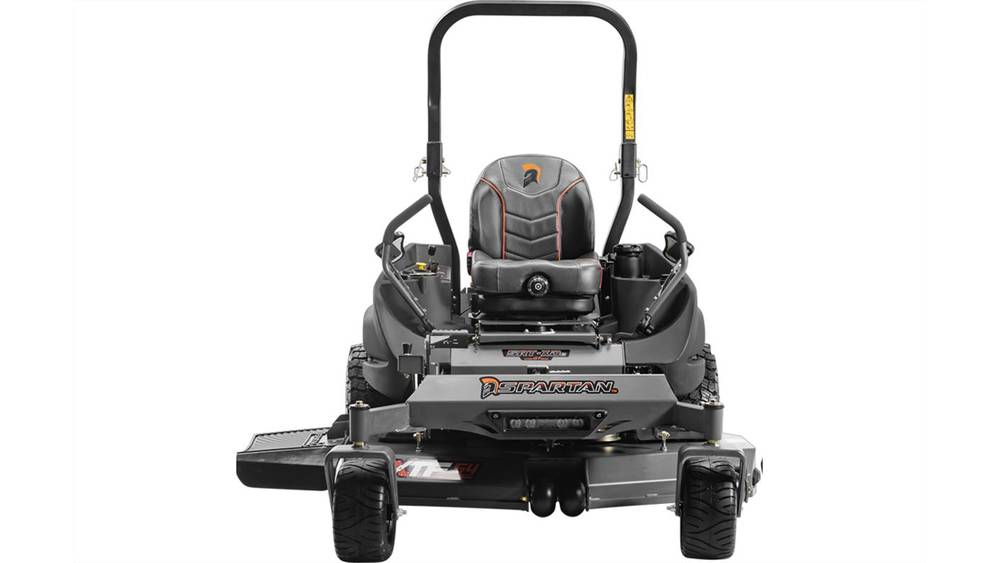

Image units shown with options
